MONITORING

Monitoring critical
physiological parameters

VitaGuard®
Our VitaGuard® vital signs monitors continuously monitor the following physiological parameters: heart rate, respiration, and oxygen saturation.
Functions
If the alarm limits set on the monitor for the monitored parameters are exceeded or not reached, VitaGuard® sets off an audible and visual alarm.
Complementary Software
With each alarm, the physiological data and the monitor parameters are saved. This data can be accessed directly on the VitaGuard®-monitor or on a PC that has the evaluation software VitaWin® installed.

Our Products

Monitors

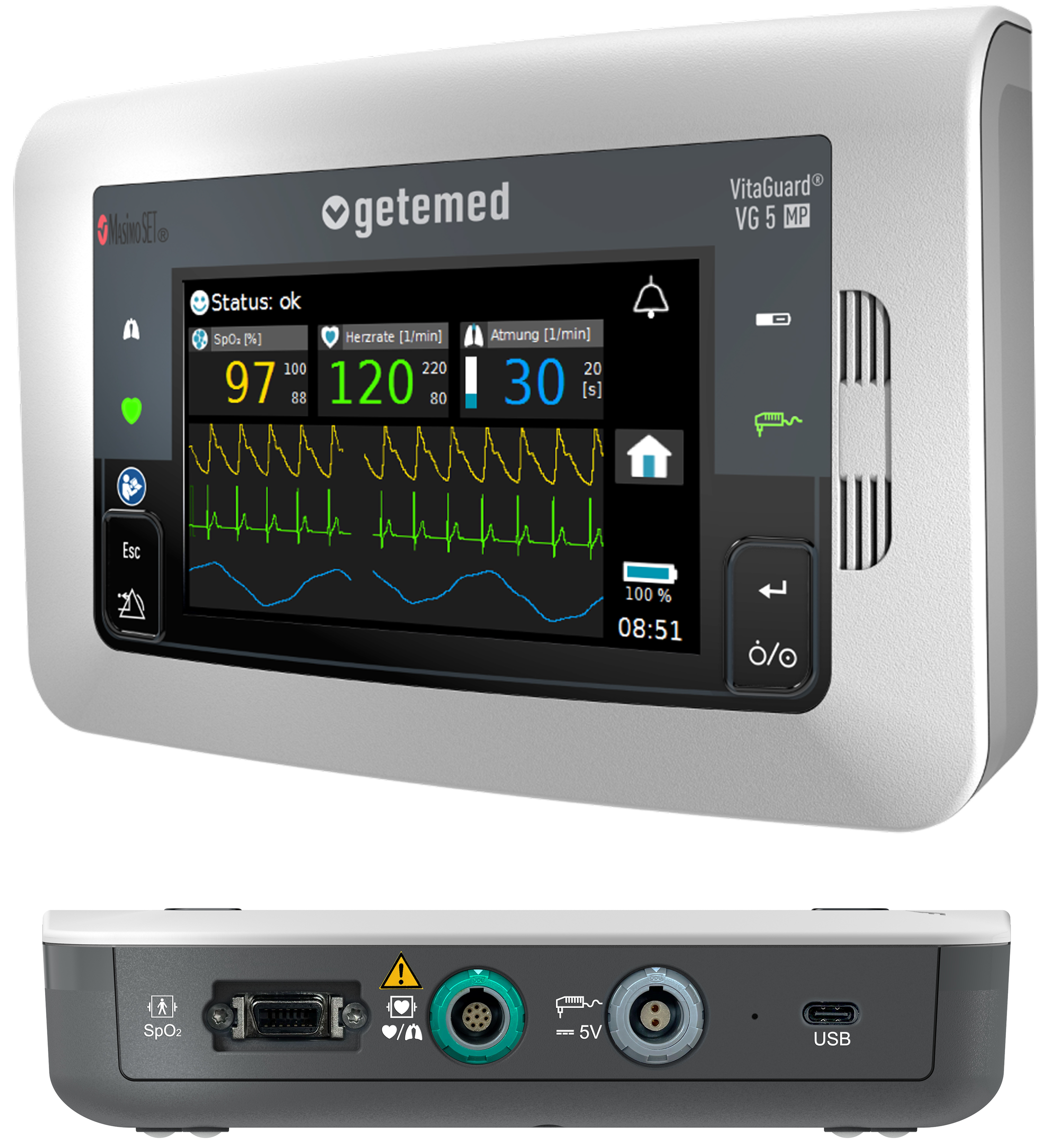

VitaGuard® VG 5 MP

Vital signs monitor

The VitaGuard® VG 5 MP is the most versatile of the VitaGuard® monitors. It monitors oxygen saturation (SpO2), heart rate and respiration of pediatric and adult patients, thus giving medical personnel and caregivers the information they need about the patient’s current vital signs, both in ambulatory and clinical environments.

Key Features:

  • Monitored parameters: Oxygen saturation, heart rate/pulse rate, respiration
  • Masimo SET® Technology
  • Lightweight and compact: 515 g, 178 x 118.6 x 40 mm
  • Defibrillator safe
  • 4.3” colour TFT display with resistive touch panel
  • Alarm notification: Auditory and visual
  • Battery operating time: 8 h minimum
  • Extensive data logging features: Event, trend, full-disclosure and compliance
  • Fast data transfer: Hi-speed USB, type USB-C port
  • Data evaluation with VitaWin®
Datasheet

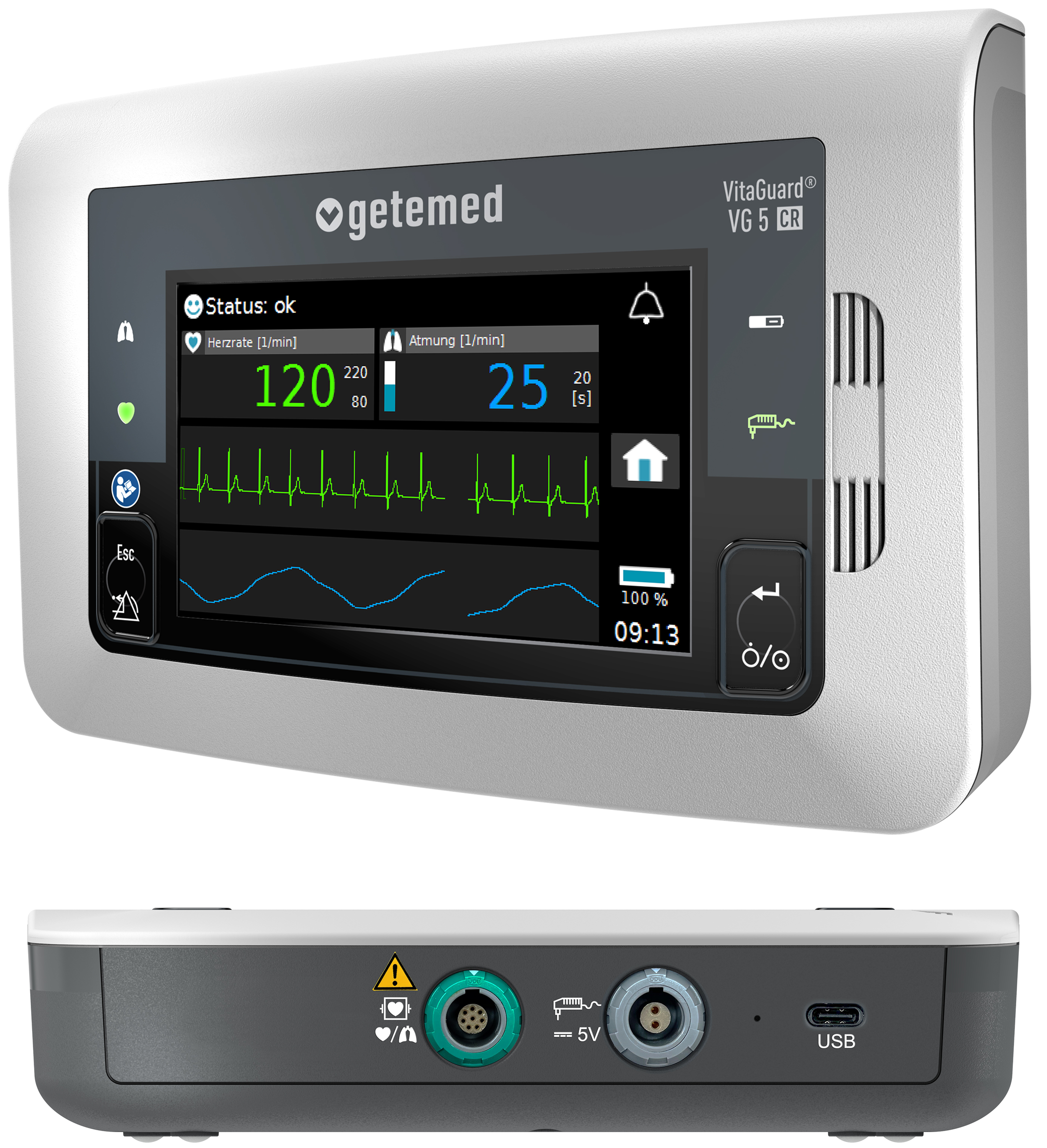

VitaGuard® VG 5 CR

The heart rate and apnea monitor

The VitaGuard® VG 5 CR monitors respiration and heart rate of pediatric and adult patients, thus giving medical personnel and caregivers the information they need about the patient’s current vital signs, both in ambulatory and clinical environments.

Key Features:

  • Monitored parameters: Heart rate and respiration
  • Lightweight and compact: 485 g, 178 x 118.6 x 40 mm
  • Defibrillator safe
    4.3” colour TFT display with resistive touch panel
  • Alarm notification: Auditory and visual
  • Battery operating time: 8 h minimum
  • Extensive data logging features: Event, trend, full-disclosure and compliance
  • Fast data transfer: Hi-speed USB, type USB-C port
  • Data evaluation with VitaWin®
Datasheet

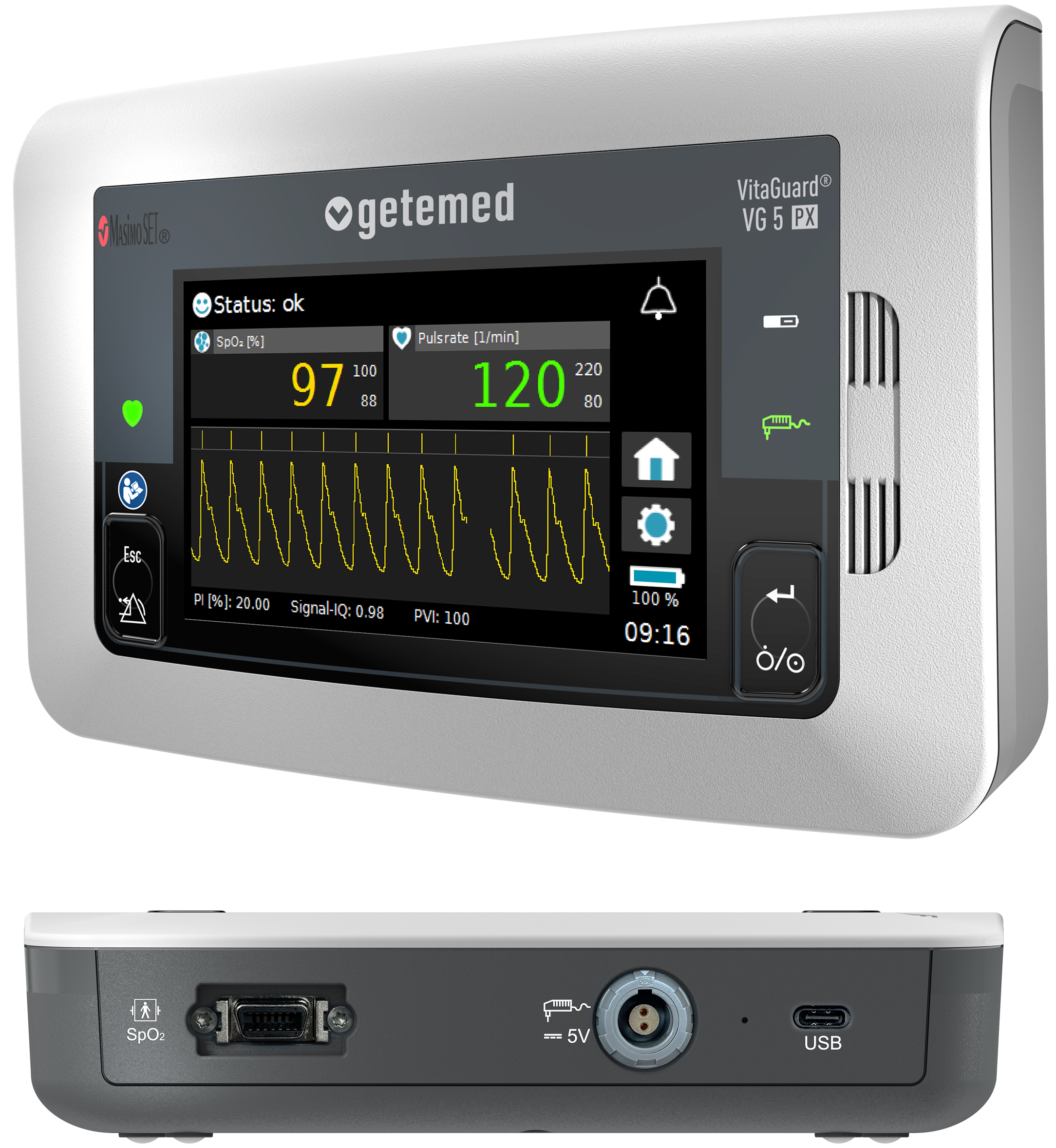

VitaGuard® VG 5 PX

The pulse oximeter

The VitaGuard® VG 5 PX monitors oxygen saturation (SpO2) and pulse rate of pediatric and adult patients, thus giving medical personnel and caregivers information they need about the patient’s current vital signs, both in ambulatory and clinical environments.

Key Features:

  • Monitored parameters: Oxygen saturation and pulse rate
  • Masimo SET® Technology
  • Lightweight and compact: 510 g, 178 x 118.6 x 40 mm
  • Defibrillator safe
  • 4.3” colour TFT display with resistive touch panel
  • Alarm notification: Auditory and visual
  • Battery operating time: 8 h minimum
  • Extensive data logging features: Event, trend, full-disclosure and compliance
  • Fast data transfer: Hi-speed USB, type USB-C port
  • Data evaluation with VitaWin®
Datasheet

VitaGuard® VG 3100

Vital functions monitor

The VitaGuard® VG 3100 is the most versatile of the VitaGuard® monitors. It monitors oxygen saturation (SpO2), heart rate and respiration of pediatric and adults patients, thus giving medical personnel and caregivers the security they need, both in ambulatory and clinical environments.

Features:

  • monitored parameters: oxygen saturation (SpO2), heart rate, respiration
  • operating time with batteries: 8 h minimum
  • displays: graphical LCD display, 5 LEDs
  • alarm notification: acoustic and visual
  • measurement functions: ECG amplitude indicator and basal impedance
  • memory modes: event, trend, full-disclosure and compliance
  • data transfer: USB port
  • data download and evaluation with VitaWin®
Product Information
Datasheet

VitaGuard® VG 2100

The heartrate and apnea monitor

The VitaGuard® VG 2100 monitors respiration and heart rate of pediatric and adults patients, thus giving medical personnel and caregivers the security they need, both in ambulatory and clinical environments.

Features:

  • monitored parameters: heart rate, respiration
  • operating time with batteries: 24 h minimum
  • displays: graphical LCD display, 5 LEDs
  • alarm notification: acoustic and visual
  • memory modes: event, trend, full-disclosure and compliance
  • data transfer: USB port
  • data download and evaluation with VitaWin®
Product Information
Datasheet

VitaGuard® VG 310

The pulse oximeter

The VitaGuard® VG 310 monitors oxygen saturation (SpO2) and pulse rate of pediatric and adults patients, thus giving medical personnel and caregivers the security they need, both in ambulatory and clinical environments.

Features:
  • monitored parameters: oxygen saturation, pulse rate
  • operating time with batteries: 8 h minimum
  • displays: Graphical LCD display, 4 LEDs
  • alarm notification: acoustic and visual
  • memory modes: event, trend, full-disclosure and compliance
  • data transfer: USB port
  • data download and evaluation with VitaWin®
Product Information
Datasheet

Software

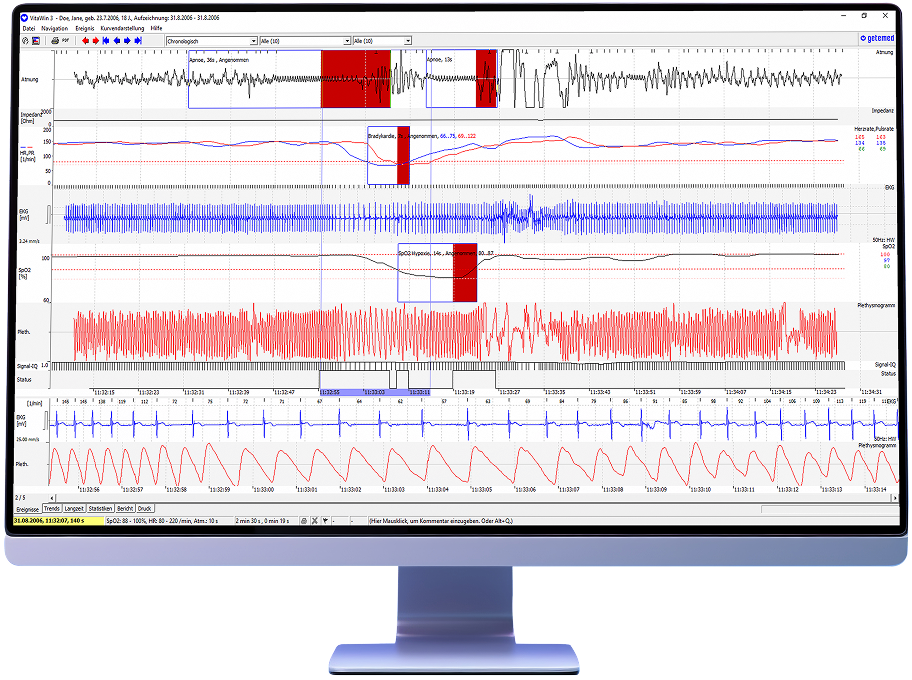

VitaWin® 3.4

The evaluation software for data logged by VitaGuard monitors

Easy to use, fast and clearly laid out – these are the most important requirements of medical professionals for a user-friendly evaluation software. With configurable and comprehensive viewing options for the graphical representation of the physiological parameters and waveforms, a clearly arranged database management and both simple and intuitive operation, the VitaWin® evaluation software meets all these requirements.

Features:

  • easy patient and alarm management
  • versatile display of all trend data such as ECG, heart rate, respiration waveform, basal impedance, SpO2, pulse rate, plethysmogram, signal IQ, perfusion index and status information
  • search functions according to alarm type and severity
  • comprehensive viewing and zoom options
  • export for further data evaluation
Datasheet
